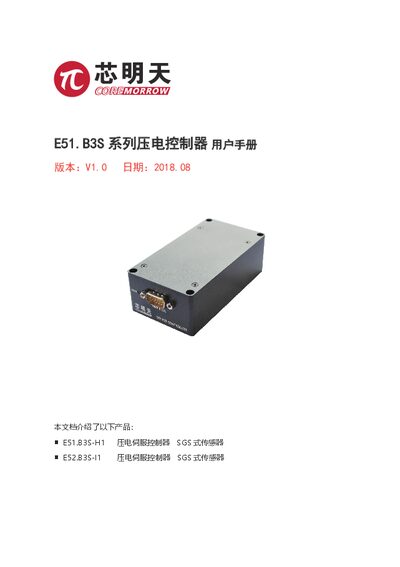

User manual for Coremorrow E51.B3S piezo controller covering features, wiring, safety and maintenance.
This manual provides an overview of the Coremorrow E51.B3S series piezo controllers, including the three‑channel E51.B3S-H1 and two‑channel E51.B3S-I1 versions. It describes typical features, applications such as piezo‑ceramic drive and 3‑D motion stages, and ordering options.
The document contains functional block diagrams, mechanical drawings, frequency‑load curves, power calculations, interface pin definitions, safety precautions, storage and transport guidelines, and service information. It is intended for users who need to install, operate, and maintain the controller safely. This manual is written in Chinese.
| Supply Voltage | 20V~30V |
|---|---|
| Peak Output Current | 180 mA |
| Average Output Current | 25 mA |
| No‑load Bandwidth | 1 kHz |
| Gain Options | 12× (‑20~120 V) or 15× (‑20~150 V) |
The controller is designed to operate from 20 V to 30 V supply voltage.
The controller can deliver a peak output current of 180 mA.
Check for frost on the controller and dry it before powering on to avoid damage.
