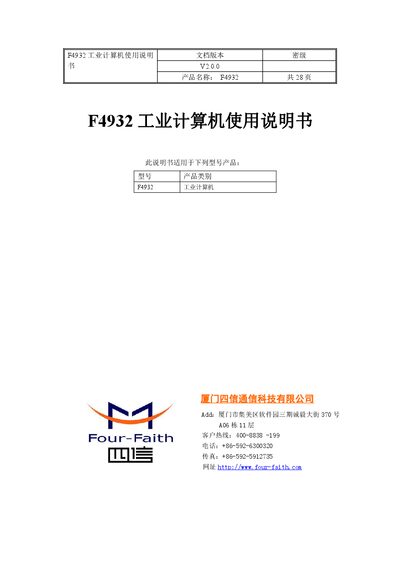

User manual for the Four-Faith F4932 industrial computer covering installation, hardware, software and system upgrade.
The Four-Faith F4932 is an ARM‑based industrial computer with an i.MX6 Cortex‑A9 processor, Android (and optional Linux) operating system, and a range of I/O options including HDMI, Ethernet, USB, RS232/RS485, and SIM/TF slots. It supports wide‑range DC power (5‑36 V) and operates from –35 °C to 75 °C, making it suitable for harsh industrial environments.
The manual provides detailed instructions for unpacking, installing the unit, connecting cables, configuring wireless and wired networks, and using system features such as VPN, remote control, and OTA upgrades. Appendices include common troubleshooting steps and FAQ. This manual is written in Chinese.
| Flash Memory | 8 GB eMMC |
|---|---|
| RAM | 2 GB DDR3 |
| SSD (optional) | 128 GB (expandable to 2 TB) |
| Power Input | DC 5‑36 V (12 V / 1.5 A typical) |
Open Settings, go to About Tablet, and select System Upgrade to choose a local upgrade file.
It supports LTE (TDD/FDD), EVDO, WCDMA, TD‑SCDMA, CDMA1X, GPRS/EDGE, and Wi‑Fi 802.11b/g/n (2.4 GHz).
The Ethernet port includes 1.5 kV electromagnetic isolation protection.
