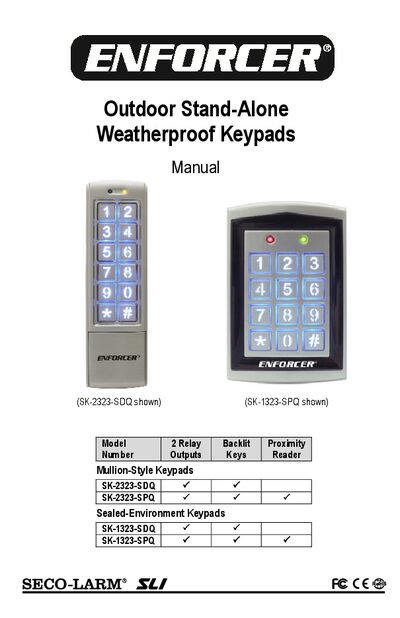

The SECO-LARM ENFORCER Outdoor Stand-Alone Keypads manual provides specs, installation, wiring, programming and troubleshooting for SK‑2323 and SK‑1323 models.
The ENFORCER Outdoor Stand‑Alone Keypads are weather‑proof, backlit keypads with two relay outputs and optional proximity readers. They are designed for outdoor security applications and support up to 1,010 user codes.
The manual covers product specifications, mounting instructions, wiring diagrams, detailed programming steps, reset procedures, and a troubleshooting guide. It also includes a quick reference sheet and warranty information.
| Operating voltage | 12~24 VAC/VDC |
|---|---|
| Standby current draw | 64 mA @12 VDC |
| Relay rating | 1 A @30 VDC, Form C |
| Number of user codes | 1,010 |
| Relay outputs | 2 (each programmable 1‑99 s or toggle) |
| Egress inputs | 2 |
| Operating temperature | -4 °F to 122 °F (‑20 °C to 50 °C) |
| Weight (SK‑1323) | 1 lb 2 oz (510 g) |
| Proximity reader frequency | 125 kHz (SK‑2323‑SPQ & SK‑1323‑SPQ) |
| Proximity reader distance | 2 in (5 cm) (SK‑2323‑SPQ & SK‑1323‑SPQ) |
The default master code is 1234.
It operates from –4 °F to 122 °F (‑20 °C to 50 °C).
