Keil ULINK Flash Debugging and Download Setup Guide

Guide for configuring Keil uVision3 to use the ULINK emulator for flash debugging and download on ARM devices.

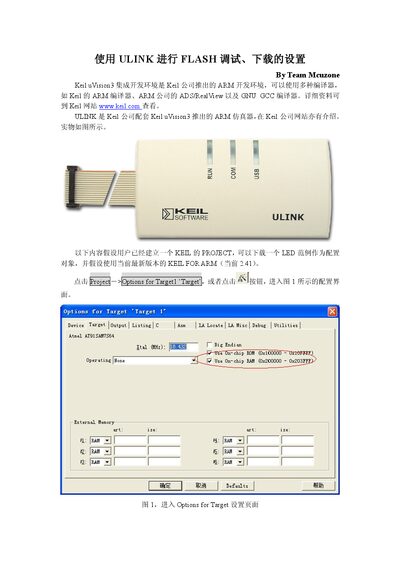

Keil ULINK Flash Debugging and Download Setup Guide - cover page

Brand: KEIL
Category: Other
Document type: User Manual
Language: Chinese
Pages: 5
File format: PDF
File size: 553 KB
Published: 28 September, 2026
Updated: 28 September, 2026
MD5 checksum: 119ED119928BA60A8044DB7706C56CE1
PDF: Keil ULINK Flash Debugging and Download Setup Guide PDF

About this manual

This manual shows how to set up the ULINK emulator within the Keil uVision3 IDE for ARM chip development. It assumes a Keil project is already created and a sample LED program is ready.

The document walks through target options, memory layout, selecting ULINK as the debugger, configuring flash download settings, and adding the appropriate flash programming algorithm before performing a download or starting a debug session. This manual is written in Chinese.

What's inside

Project Options
LA Locate (Memory Layout)
Debug Tab Settings
Utilitise Options
Flash Download Setup
Adding Flash Programming Algorithm

Specifications

Target chip RAM start address (AT91SAM7S64)	0x00200000
Target chip RAM size after correction (S64 16K RAM)	0x3FE0

Frequently asked questions

How do I select ULINK as the debugger in Keil uVision3?

In the Debug tab, choose "ULINK ARM Debugger" and open Settings to view or adjust ULINK information.
