The Corona GR7SF instruction manual provides setup, binding, mode selection, gyro sensitivity, servo and LED status details for the GYRO‑Embedded S‑FHSS…

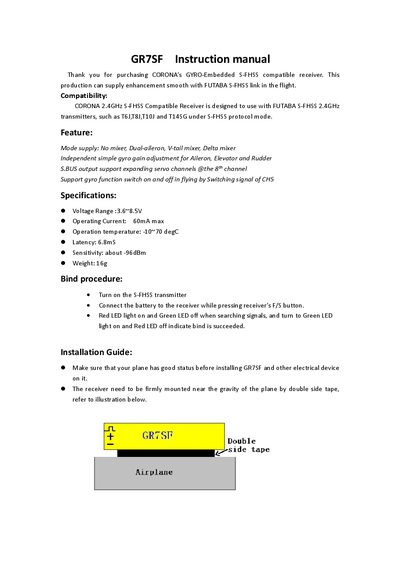

This manual explains the features and compatibility of the Corona GR7SF GYRO‑Embedded S‑FHSS receiver, which works with FUTABA S‑FHSS 2.4 GHz transmitters such as the T6J, T8J, T10J and T14SG. It covers voltage requirements, current draw, operating temperature, latency, sensitivity and weight.
The guide includes step‑by‑step binding procedures, installation tips, axis direction checks, mode selection, gyro sensitivity adjustment, servo selection, failsafe setup and LED status indicators, helping users configure the receiver for various mixer modes and flight conditions.
| Voltage Range | 3.6~8.5V |
|---|---|
| Operating Current | 60 mA max |
| Operation Temperature | -10~70 °C |
| Latency | 6.8 ms |
| Sensitivity | about -96 dBm |
| Weight | 16 g |
Turn on the S‑FHSS transmitter, connect the battery to the receiver while pressing the F/S button; the red LED will light and the green LED will be off while searching, then the green LED turns on and the red LED off when binding succeeds.
The receiver provides three potentiometers for independent X, Y and Z axis adjustment; set the clock positions to achieve the desired negative, positive or zero sensitivity.
When no signal is detected the red LED is off solid; a good signal shows the green LED off solid; a weak signal makes the green LED flash; no signal and searching show the red LED off solid.
