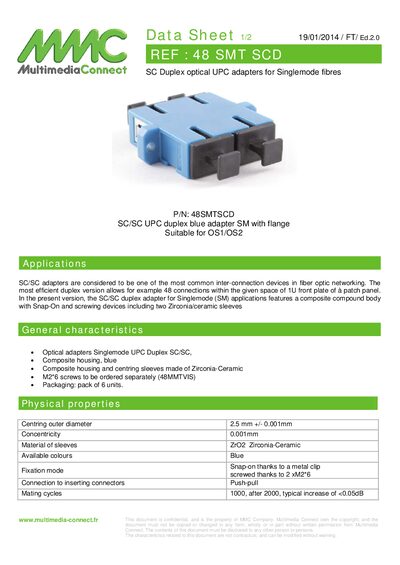

The Multimedia Connect 48SMT SCD SC/SC duplex optical UPC adapter data sheet lists specifications, optical performance and physical properties for…
The 48SMT SCD is a single‑mode UPC duplex SC/SC optical adapter with a composite housing in blue and zirconia‑ceramic centring sleeves. It features a snap‑on fixation mode with a metal clip and optional M2×6 screws for secure mounting, packaged in packs of six units.
Key specifications include typical attenuation below 0.1 dB, return loss better than –20 dB, operating temperature from –40 °C to 85 °C, and a centring outer diameter of 2.5 mm ± 0.001 mm. The adapter complies with TIA/EIA, IEC, CECC and Telcordia standards and is suitable for OS1/OS2 applications.
| Connector type | SC/SC duplex UPC |
|---|---|
| Housing colour | Blue |
| Sleeve material | Zirconia‑Ceramic |
| Centring outer diameter | 2.5 mm ± 0.001 mm |
| Concentricity | 0.001 mm |
| Typical attenuation | < 0.1 dB |
| Typical return loss | < ‑20 dB |
| Operating temperature range | -40 °C to 85 °C |
| Storage temperature range | -40 °C to 90 °C |
| Mating cycles | 1000 cycles |
The typical attenuation is less than 0.1 dB.
The typical return loss is better than –20 dB.
It operates from –40 °C up to 85 °C.
Each pack contains six adapters.
