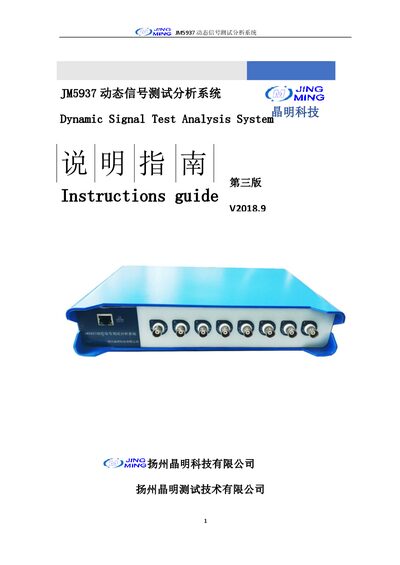

The Jingming JM5937 Instruction Guide provides an overview, specifications, setup, and operation instructions for the dynamic signal test analysis system.
The JM5937 is a high‑performance dynamic signal test analysis system that communicates with a computer via LAN to acquire voltage or IEPE signals. Each channel contains an independent 24‑bit ADC with up to 100 kHz sampling per channel, supporting up to eight devices in a cascaded configuration.
The manual covers system features, hardware composition, performance specifications, panel description, software installation, network configuration, firewall settings, and hardware connection procedures, helping users install, configure, and operate the system safely and efficiently. This manual is written in Chinese.
| ADC resolution | 24 bits |
|---|---|
| Maximum sampling rate | 100 kHz per channel |
| Input signal type | Voltage or IEPE |
| Input impedance | >10 MΩ |
| Dynamic range | >100 dB |
| Power consumption | 19 V/0.45 A |
| Operating temperature | -20 °C to +70 °C |
| Dimensions (L×W×H) | 285 mm × 183 mm × 63 mm |
| Weight | 1.83 kg |
Set the computer’s local IP address to 192.168.2.100 with a subnet mask of 255.255.255.0.
The system uses a 19 V/3.95 A power adapter (AC 220 V input).
