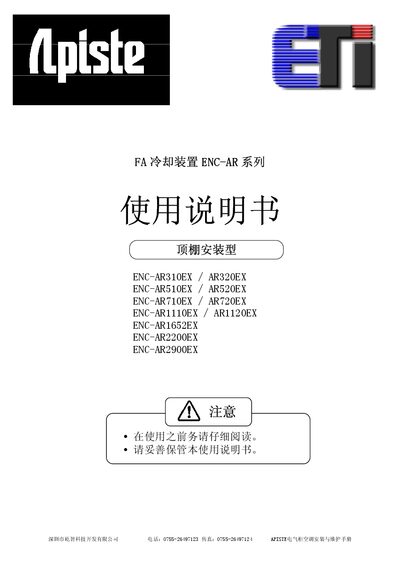

Installation and maintenance guide for APISTE ENC-AR series electrical cabinet air conditioners.
This manual provides step‑by‑step instructions for installing the top‑mounted APISTE ENC-AR series air‑conditioning units in electrical cabinets. It covers safety precautions, mechanical mounting, wiring, and initial test runs before the unit is put into service.
The document also details routine maintenance tasks such as filter and fan replacement, troubleshooting procedures, and a reset method for the high‑load automatic stop circuit. Technical data, dimensions, and wiring diagrams are included for reference. This manual is written in Chinese.
| Maximum ambient temperature | 40 °C |
|---|---|
| Minimum spacing between inlet and outlet | ≥400 mm |
The power to the control panel must be disconnected before installation.
A minimum distance of 400 mm should be maintained between the inlet and outlet.
When the external air temperature exceeds 40 °C, the unit is considered to be in a high‑temperature state.
