Height XYUV-4Ⅱ UV-LED Panel Light User Manual

User manual for the Height XYUV-4Ⅱ UV‑LED panel light, covering features, installation, operation, and safety.

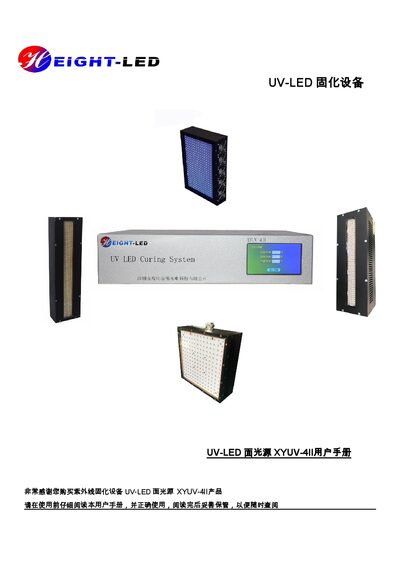

Height XYUV-4Ⅱ UV-LED Panel Light User Manual - cover page
Brand
Height
Document type
User Manual
Language
Chinese
Pages
11
File format
PDF
File size
870 KB
Published
28 September, 2026
Updated
28 September, 2026
MD5 checksum
10A9221EA4C74D63603ED2B7F474D45A
PDF
Height XYUV-4Ⅱ UV-LED Panel Light User Manual PDF

About this manual

The Height XYUV-4Ⅱ UV‑LED panel light provides high‑purity UV illumination with low heat radiation and a narrow wavelength range. It features a compact design, fan cooling, and real‑time temperature monitoring, making it suitable for precise curing applications.

The manual guides users through device installation, connection of power and I/O ports, basic operation settings such as power and exposure time, and safety precautions. It also includes troubleshooting information like high‑temperature fault alarms and warranty details. This manual is written in Chinese.

What's inside

  • UV‑LED Panel Light Features
  • Device Installation and Connections
  • Basic Operation and Settings
  • Peripheral Device Connections
  • Warranty and Safety Precautions
  • Parameter Settings
  • High‑Temperature Fault Alarm

Specifications

LED lifespan25000‑30000 hours
Input voltage220 V / 50 Hz AC
Default temperature alarm setting65 °C
Power setting range0‑100 %
Exposure time range0‑9999 seconds

Frequently asked questions

What warranty does the product have?

The product includes a one‑year free repair warranty, excluding damage caused by improper handling.
