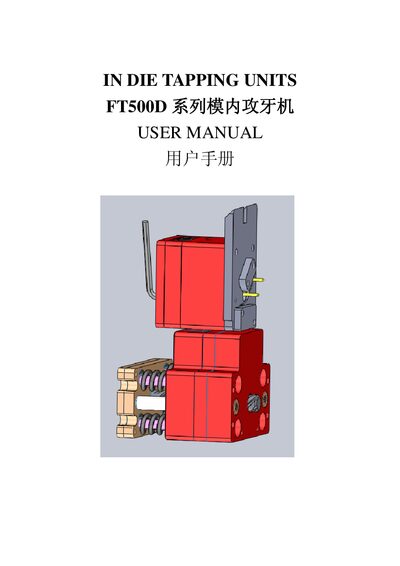

The FASTOP FT500D in-die tapping unit user manual provides installation, operation, tap exchange, lubrication, and regular maintenance instructions.
This manual guides users through planning, preparing, and assembling the FT500D in‑die tapping unit. It includes detailed steps for installing the drive body, rails, and locking mechanisms, as well as safety notes and equipment checks.
The document also covers tap exchange procedures, micro‑lubricating methods, and a regular maintenance schedule that details cleaning, oiling, and bearing replacement to keep the unit operating reliably. This manual is written in Chinese.
| Tap standard | U.S. system / Metric |
|---|---|
| Material thickness | 1 mm |
| Tapping depth | 2.3 mm |
| Tap apex height | 9.0 mm |
| Total movement space | 11.5 mm |
| Max press speed (250 mm stroke) | 50 SPM |
| Max press speed (120 mm stroke) | 100 SPM |
Loosen the lock handle, pull out the tapping body, rotate the tool to bring the tap to the outer position, remove the tap, then rotate the transmission wheel and verify the tap apex protrudes 9 mm before inserting a new tap.
