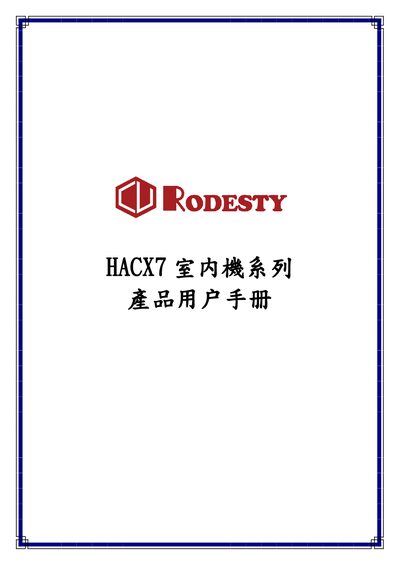

The XiongYue HACX7 Indoor Unit User Manual provides product overview, specifications, operation instructions, and troubleshooting for the HACX7 series.
This manual introduces the HACX7 indoor unit series, detailing dimensions, hardware specifications, and safety precautions. It includes a full list of product specifications such as a 7‑inch TFT‑LCD screen, wall‑mount design, and power requirements.
The guide explains how to use the device’s functions—quick‑access buttons, intercom, video monitoring, and smart security settings—and provides system configuration steps, troubleshooting tips, and warranty information. This manual is written in Chinese.
| Display | 7‑inch TFT‑LCD |
|---|---|
| Buttons | 5 metal brushed buttons |
| Network Interface | RJ45 |
| Dimensions | 220 × 160 × 19.4 mm |
| Resolution | 800 × 480 |
| Power Input | DC 12 V |
| External Storage | SD card |
Check that the volume is not set too low and adjust the volume settings as needed.
Ensure the network cable is properly connected; the status bar will show the network connection status.
