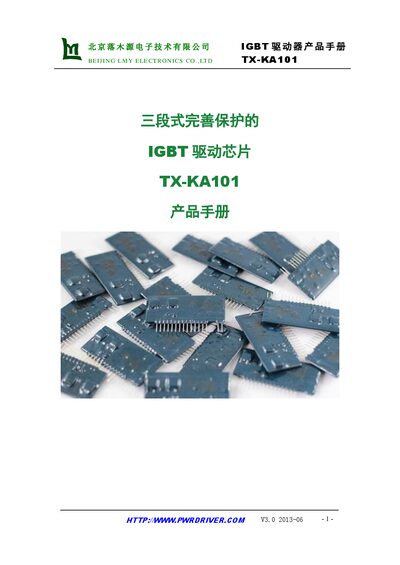

Product manual for the TX‑KA101 IGBT driver with three‑stage short‑circuit protection and full electrical specifications.
The TX‑KA101 is a high‑power single‑chip IGBT driver offering up to 6 A output current, 4 µC output charge and 2.5 W maximum output power. It features a three‑stage short‑circuit protection that can be adjusted via dedicated pins.
The manual provides a schematic overview, detailed electrical parameters, pin descriptions, application reference circuits, related product information and a FAQ section for common troubleshooting. This manual is written in Chinese.
| Maximum Output Current | ±6 A |
|---|---|
| Output Charge | 4 µC |
| Maximum Output Power | 2.5 W |
| Input Voltage Range | 22 V – 25 V |
| Isolation Voltage | 3.5 kV (50 Hz/1 min) |
| Operating Temperature Range | -40 °C – 85 °C |
The driver can deliver up to ±6 A of output current.
The recommended input voltage is between 22 V and 25 V.
The driver is rated for 3.5 kV isolation at 50 Hz for 1 minute.
