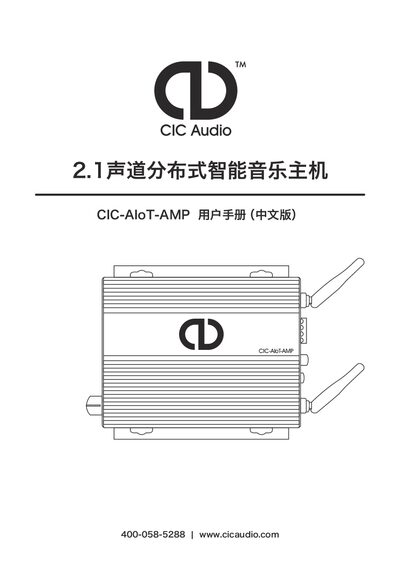

User manual for the CIC-AIoT-AMP smart audio amplifier with Wi‑Fi, Bluetooth and AUX connectivity.
The CIC‑AIoT‑AMP is a versatile smart audio amplifier that can stream music via Wi‑Fi, Bluetooth or AUX and drive speakers and a subwoofer in 2.1 configurations. It integrates with the d.Play ecosystem and can be controlled through the d.SmartHome app for multi‑room playback and smart‑home scenes.
The manual explains hardware connections, LED indicators, source switching, app setup, and how to add the device to the d1 host. Detailed technical specifications and step‑by‑step instructions for network, AUX and Bluetooth playback are provided.
| Wi‑Fi standard | 802.11b/g/n 2T2R |
|---|---|
| Wi‑Fi frequency range | 2.412 GHz ~ 2.484 GHz |
| Bluetooth standard | Bluetooth 4.0 |
| Output power | 40 W @ 6 Ω; 25 W @ 8 Ω |
| Power adapter | AC 100‑240 V, 19 V/3 A |
| Dimensions (H × W × D) | 43 mm × 147 mm × 188 mm |
| Operating temperature | 0 °C ~ 40 °C |
| Storage temperature | -20 °C ~ 70 °C |
| Weight | 1.5 kg |
It offers a 2.1 audio output via RCA connectors and a speaker output via Phoenix terminals, plus a 3.5 mm AUX input for external sources.
The device supports AirPlay, DLNA, UPNP and can play music from services such as QQ Music, TIDAL, Spotify, iHeartRadio, Pandora and others.
