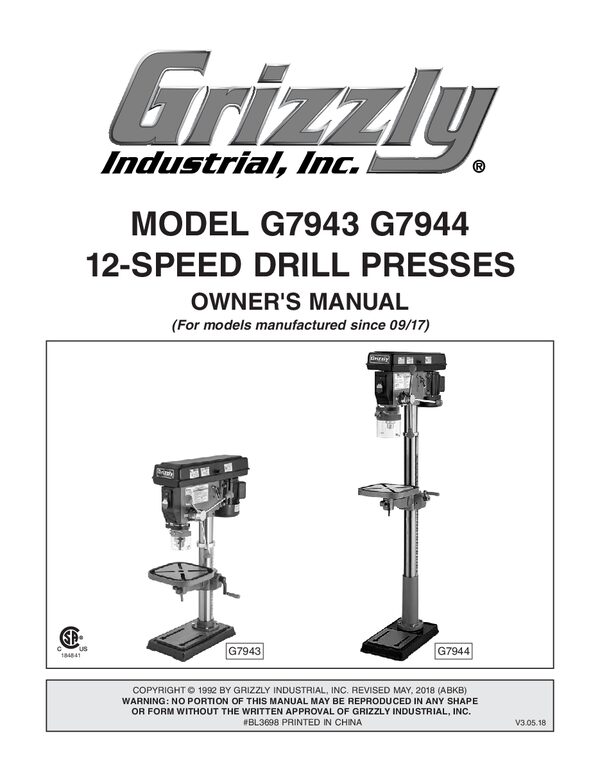

The Grizzly G7943/G7944 12‑speed drill press owner’s manual provides safety instructions, setup, operation, maintenance, and wiring details.
This manual covers all aspects of the Grizzly G7943 and G7944 12‑speed drill presses, including safety guidelines, power requirements, assembly, operation, accessories, maintenance, service, wiring diagrams, parts lists, and warranty information. It is intended for owners, operators, and service technicians to ensure safe and effective use of the equipment.
Key sections include detailed safety instructions, step‑by‑step setup procedures, operating instructions for drilling and speed selection, routine maintenance tasks, troubleshooting, and complete wiring diagrams. Technical specifications for both models are provided in the data sheets.
| Power Requirement | 120V, Single‑Phase, 60 Hz |
|---|---|
| Full‑Load Current Rating | 7.5 A |
| Main Horsepower | 3/4 HP |
| Number of Spindle Speeds | 12 |
| Spindle Speed Range | 140 – 3050 RPM |
| Maximum Table Tilt | 90 deg. |
| Weight (G7943) | 133 lbs |
| Weight (G7944) | 146 lbs |
Use a well‑ventilated area and approved safety equipment such as dust masks designed to filter microscopic particles.
Both models provide 12 spindle speeds.
The drill press requires 120 V single‑phase power at 60 Hz.
