The document introduces the characteristics and applications of power supply for metal surface treatment, as well as the introduction of new power supply and the requirements of power supply technology due to the progress of surface treatment technology. It emphasizes the advantages of new power supply, such as high accuracy, energy saving, and environmental friendliness.

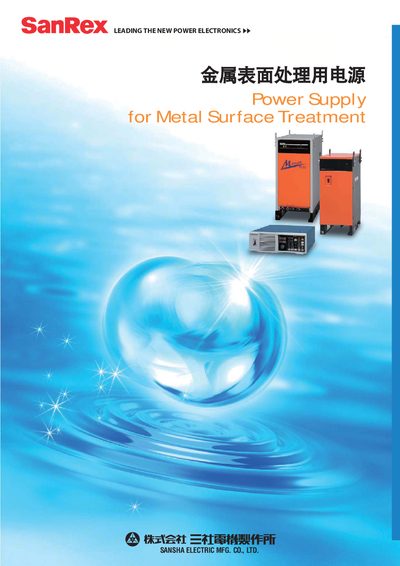

This manual introduces SanRex's power supply designed for metal surface treatment applications such as decorative plating, rust prevention, and electronic component plating. It describes the digital control technology, high‑frequency inverter design, and environmental durability features that improve plating quality while reducing noise and pollution.
The document covers operation modes, jog‑dial setup, remote‑control pendant functions, RS‑485 communication, safety guidelines, dimensions, and detailed specifications. Troubleshooting procedures, defect diagnosis via alarms, and maintenance tips are also provided to ensure reliable long‑term performance.
| Output current range | 10 A – 15 000 A |
|---|---|
| Input voltage | 200‑220 V & 380‑440 V |
| Communication speed (RS‑485) | 38,400 bps |
| Accuracy of output voltage/current | ±0.5 % |
| Memory capacity | 99 operation patterns |
The output current is set using the jog dial on the remote‑control pendant, which allows digit‑by‑digit adjustment.
It includes an RS‑485 port with a maximum communication speed of 38,400 bps.
The unit can memorize up to 99 different operation patterns.
