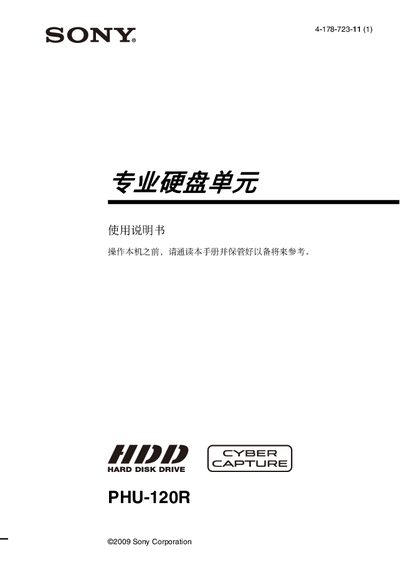

This file is the user manual of PHU-120R professional hard disk unit, which introduces the features and characteristics of the product, installation methods, operation methods, etc.
This manual explains how to safely handle the PHU‑120R hard‑disk unit, which is equipped with a 1.8‑inch, 60 GB (or optional 120 GB) HDD and a high‑capacity lithium‑ion battery for up to 12 hours of continuous recording. It includes warnings about impact, vibration, temperature, humidity, altitude, and noise, and describes the built‑in 3G sensor that protects the drive from drops.
The guide covers battery selection (Sony BP‑U30 or BP‑U60 with BC‑U1/BC‑U2 chargers), installation on compatible Sony XDCAM EX camcorders, mode selection between 120 GB single‑drive or 60 GB × 2 configurations, and procedures for connecting to computers, copying video clips, and formatting the HDD. This manual is written in Chinese.
| HDD size | 1.8 inch |
|---|---|
| HDD capacity (default) | 60 GB |
| HDD capacity (optional) | 120 GB |
| Battery runtime | up to 12 hours |
| Drop protection height | 150 cm |
