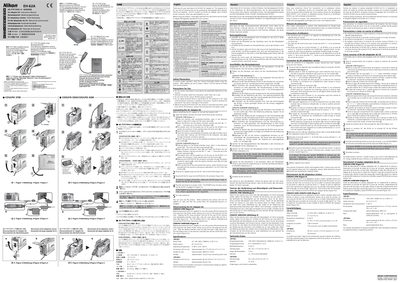

This is an instruction manual for the Nikon EH-62A power adapter
The EH-62A AC adapter kit consists of the EH-62 AC power adapter and the EP-62A battery‑compartment connector. It provides a 4.2 V DC supply for Nikon cameras that use the EN‑EL5 lithium‑ion battery, allowing operation without a battery.
The manual details safety precautions, step‑by‑step connection and disconnection procedures, and technical specifications. It also explains how to verify proper operation using the POWER indicator and what to do if the indicator does not light. This manual is written in German.
| EH‑62 Input Voltage | 100–240 V AC, 50/60 Hz |
|---|---|
| EH‑62 Input Current | 0.18–0.1 A |
| EH‑62 Output Voltage | 4.2 V DC |
| EH‑62 Operating Temperature | 0–40 °C |
| EH‑62 Dimensions | 26 × 41 × 77 mm (H × B × T) |
| EH‑62 Cable Length | 1.8 m |
| EH‑62 Weight | ≈125 g (without cable) |
| EP‑62A Dimensions | 53 × 36 × 8 mm (H × B × T) |
| EP‑62A Weight | ≈20 g |
First turn the camera off, open the battery compartment, insert the EP‑62A connector with correct polarity, then plug the EH‑62 adapter into the EP‑62A connector and finally turn the camera on.
Unplug the adapter and send it to a Nikon service representative for inspection.
Turn the camera off, unplug the wall plug from the power outlet, then pull the DC plug, not the cable, to disconnect the adapter.
