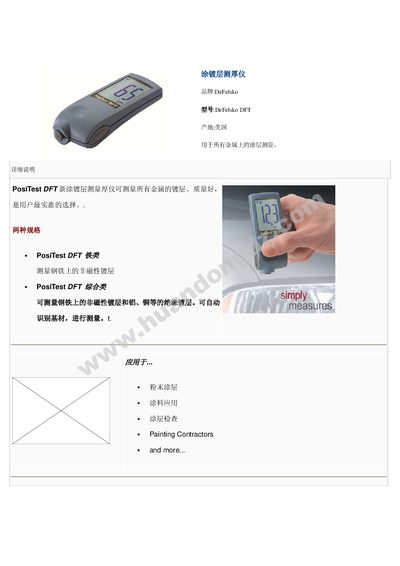

This document introduces the DeFelsko brand coating thickness gauge, model DeFelsko DFT. This thickness gauge is suitable for measuring coatings on all metals, and it features fast, repeatable measurements, wide applications without calibration, etc.
The DeFelsko DFT coating thickness gauge measures non‑magnetic coatings on steel and insulating layers on aluminum, copper and other metals. It offers automatic substrate recognition, audible and visual measurement indicators, and a V‑groove probe for cylindrical parts.
The manual provides operating instructions, technical specifications, a list of included accessories, and information on NIST‑traceable calibration standards. Compliance with multiple international standards is also documented. This manual is written in Chinese.
| Measurement Range | 0‑40 mils (0‑1000 µm) |
|---|---|
| Accuracy | +(0.1 mils + 3%) (≈2 µm + 390 ppm) |
| Size | 4 x 15 x 0.9 in (100 x 38 x 23 mm) |
| Weight | 25 oz (70 g) |
The gauge can convert between mils and microns.
It measures coating thickness from 0 to 40 mils (up to about 1000 µm).
The package includes a built‑in probe, plastic thermal block, storage case, AAA battery, manual and a one‑year warranty card.
A NIST‑traceable calibration certificate is available and can be purchased with the instrument.
