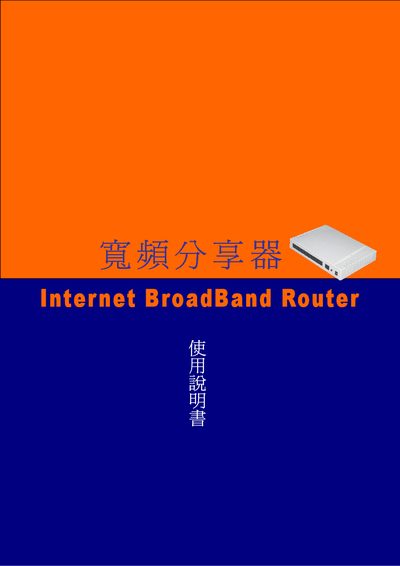

This guide explains how to install and configure the Internet Broadband Router. It details the required hardware, such as the ADSL or Cable modem, Ethernet cables, and optional hub or switch, and walks through connecting the router's WAN and LAN ports.
The document also describes LED indicators, DHCP and NAT functions, and provides troubleshooting steps like checking the LINK LED and using the reset button to restore factory settings. This manual is written in Chinese.
| Ports | 7 or 8 Ethernet ports (model variant) |
|---|---|
| Maximum LAN Speed | 100 Mbps |
| Maximum WAN Speed | 100 Mbps |
| LED Indicators | WAN and LAN status LEDs |
| DHCP Server | Built‑in DHCP server |
| NAT Function | Supports NAT sharing |
| Reset Button | Restores factory defaults |
Press the Reset button (labeled Res eD) on the router; this restores all settings to their default values.
The router includes 4 or 8 Ethernet ports, allowing up to eight devices to be connected directly.
The LAN ports support speeds up to 100 Mbps.
