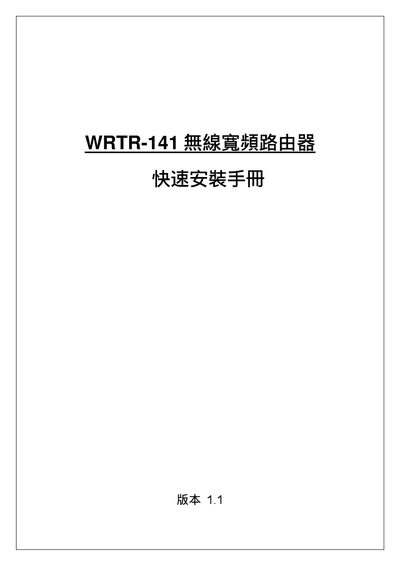

WRTR-141 wireless broadband router quick installation guide, including packaging contents, router factory default values, router lights, router installation, changing computer TCP/IP settings, router internet settings, and FAQs
This guide introduces the WRTR‑141 11g wireless router and lists the items included in the package, such as the router, a foldable RP‑SMA 2dBi antenna, a 7.5 V power adapter and an Ethernet cable. It explains the meaning of the router’s LED indicators and shows how to position the antenna for optimal coverage.
Step‑by‑step instructions cover connecting the WAN port to your modem, wiring the LAN ports, powering the device, and configuring TCP/IP settings on Windows (2000/XP/Vista). The guide also provides troubleshooting tips, port‑forwarding setup for services like FTP, and the reset procedure to restore factory defaults. This manual is written in Chinese.
| Wireless Standard | 11g |
|---|---|
| Power Supply | 7.5 V |
| Default IP Address | 192.168.1.254 |
| Subnet Mask | 255.255.255.0 |
| DHCP Server | Enabled (auto‑assign IP) |
Insert a pin into the reset hole at the back of the router and hold for about ten seconds; the router will restore its default settings.
