Beijing Dongtu Xunxin Technology PROFIBUS-OEM2 User Manual

This manual introduces the function and usage of the PROFIBUS-OEM2 debugging experiment system, including OEM2 development experiment board, experiment board program, GSD file, experiment board program example and building a debugging experiment system.

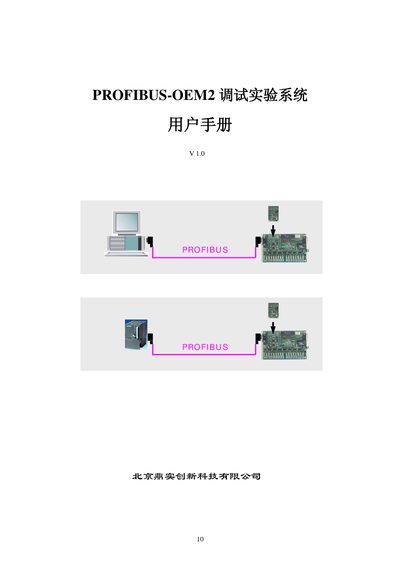

Beijing Dongtu Xunxin Technology PROFIBUS-OEM2 User Manual - cover page
Brand
PROFIBUS-OEM2
Category
Automation control Equipment
Document type
User Manual
Language
Chinese
Pages
108
File format
PDF
File size
2.4 MB
Published
20 September, 2011
Updated
30 September, 2023
MD5 checksum
F8FF039C0A155D6C46C7E2E2D66D4FAF
PDF
Beijing Dongtu Xunxin Technology PROFIBUS-OEM2 User Manual PDF

About this manual

This manual describes the PROFIBUS‑OEM2 debugging experiment system developed by Beijing Dongtu Xunxin Technology. It provides a complete, compact platform for PROFIBUS‑DP communication, including hardware description, software tools, and configuration procedures.

The document includes detailed sections on the three operating modes, GSD file handling, firmware download, and safety guidelines, enabling users to set up, program, and troubleshoot the system effectively. This manual is written in Chinese.

What's inside

  • Overview
  • Hardware Description
  • Software and GSD Files
  • Programming and Initialization
  • Operating Modes
  • System Setup
  • Safety Guidelines

Specifications

Connector pins16 pins
Supply voltage24 VDC
Crystal oscillator frequency14.7456 MHz
MicrocontrollerP89VSIRD2

Frequently asked questions

How can the firmware be downloaded to the board?

Use the Flash Magic tool to download the HEX program to the board’s CPU, which can be done together with operating mode 2.

What is the purpose of the PB‑OEM2‑SE module?

It is the main PROFIBUS‑DP interface board that provides the communication interface and hardware platform for the system.

Download PDF (2.4 MB)
