WGW041 User Manual

This manual introduces the burning method of WGW041, including precautions and usage

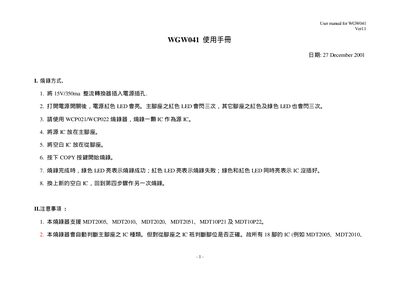

WGW041 User Manual - cover page
Brand
WGW041
Category
Other Electronics
Document type
User Manual
Language
German
Pages
3
File format
PDF
File size
101 KB
Updated
30 September, 2023
MD5 checksum
B91B5202BBBB3D06F6E23E6433ED956F
PDF
WGW041 User Manual PDF

About this manual

The WGW041 user manual provides basic information on powering the unit, including the required 15 V/350 mA input and operating voltage ranges of 4.48 V (6200) to 5.11 V (7500). It also describes the adaptor connection and the LED indicators used for status monitoring.

Additional sections explain the reset functions (e.g., RESET #38 and RESET #232) and the checksum calculations required for proper operation. The document includes reference tables for related MDT series modules and notes on firmware version 1.6. This manual is written in German.

What's inside

  • Power Supply
  • LED Indicators
  • Reset Procedure
  • Checksum Calculation
  • Adaptor Connection
  • Module Compatibility

Specifications

Input voltage / current15 V / 350 mA
Operating voltage range4.48 V (6200) / 5.11 V (7500)

Frequently asked questions

What is the purpose of the checksum in the WGW041 manual?

The checksum is used to verify data integrity for various configuration parameters.

Download PDF (101 KB)
