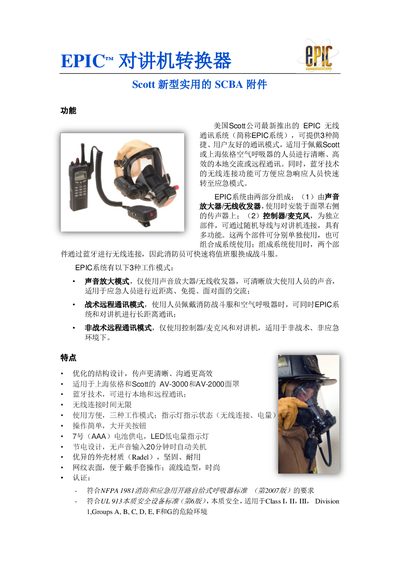

EPIC™ Intercom Converter Scott's new practical SCBA accessory provides three convenient and user-friendly communication modes for personnel wearing Scott or Shanghai Yige air respirators to achieve clear and efficient local or remote communication. Features include optimized structural design, compatibility with Shanghai Yige and Scott's AV-3000 and AV-2000 masks, Bluetooth technology, unlimited wireless connection time, etc.
The EPIC wireless communication system consists of a sound amplifier/wireless transceiver mounted on the right side of the facepiece and a separate controller/microphone that connects to a two‑way radio via a cable. The two parts can be used independently or together, linking via Bluetooth for rapid mode switching. The system offers three modes: a sound‑amplification mode for clear close‑range hands‑free communication, a tactical remote‑communication mode for long‑range use while wearing fire‑fighter gear, and a non‑tactical remote mode for general use.
Technical data include compact dimensions, a durable Radel housing, an operating temperature range of –20 °C to +40 °C, and power supplied by three AAA alkaline batteries providing up to 20 hours of operation. Ordering information lists part numbers for compatibility with Shanghai Yige AV‑3000 and AV‑2000 facepieces. This manual is written in Chinese.
| Sound Amplifier dimensions (L×W×H) | 12.0 × 5.7 × 4.44 mm |
|---|---|
| Sound Amplifier housing material | Radel |
| Controller/Microphone dimensions (L×W×H) | 100 × 63 × 50 mm |
| Battery type | 3 × AAA alkaline batteries |
| Battery life (continuous operation) | 20 hours |
The device operates for about 20 hours on three AAA alkaline batteries, and it automatically shuts off after 20 minutes of no sound input.
It uses three AAA (7号) alkaline batteries.
