UNITOR S 700 HM / S 1600 HM / S 2000 HM / S 3300 HM Ultrasonic Cleaning Units Instruction Manual

This document provides the user manual for UNITOR Ultrasonic Cleaning Units models S 700 HM / S 1600 HM / S 2000 HM / S 3300 HM.

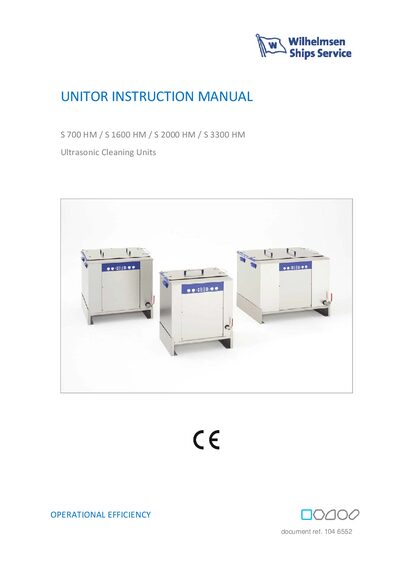

UNITOR S 700 HM / S 1600 HM / S 2000 HM / S 3300 HM Ultrasonic Cleaning Units Instruction Manual - cover page
Brand
Unitor
Document type
User Manual
Language
English
Pages
30
File format
PDF
File size
570 KB
Published
18 November, 2023
Updated
18 November, 2023
MD5 checksum
610CB80F2D7BCFD0E11C27D34C51D46E
PDF
UNITOR S 700 HM / S 1600 HM / S 2000 HM / S 3300 HM Ultrasonic Cleaning Units Instruction Manual PDF

About this manual

This manual covers the general information, safety warnings, and technical principles of UNITOR ultrasonic cleaning units. It explains the ultrasonic cleaning process, product features, and the required cleaning media.

Detailed sections describe unpacking, installation, connection to mains, filling, heating, degassing, and operation in pulse or continuous mode. Maintenance procedures, troubleshooting, and disposal instructions are also included, along with the manufacturer's contact details.

What's inside

  • General
  • Important safety warnings
  • Ultrasonic cleaning factors
  • Product description
  • Before initial operation
  • Putting unit into operation
  • Ultrasonic cleaning process
  • Cleaning media
  • Maintenance
  • Putting out of action and waste disposal

Specifications

Tank max. volume (L)76 / 165 / 208 / 383
Ultrasonic frequency (kHz)37
Power consumption total (W)2750 / 3050 / 3250 / 8050
Heating power (W)2200 / 2200 / 2200 / 6000
Weight (kg)55 / 78 / 85 / 97

Frequently asked questions

What safety precautions must be followed when using the ultrasonic cleaning unit?

The unit must be connected to a correctly grounded socket, operated only by authorized staff, kept dry, and never used with flammable liquids or in explosive atmospheres. Personal ear protection is recommended due to ultrasonic noise.
