This document describes the features and specifications of the product.

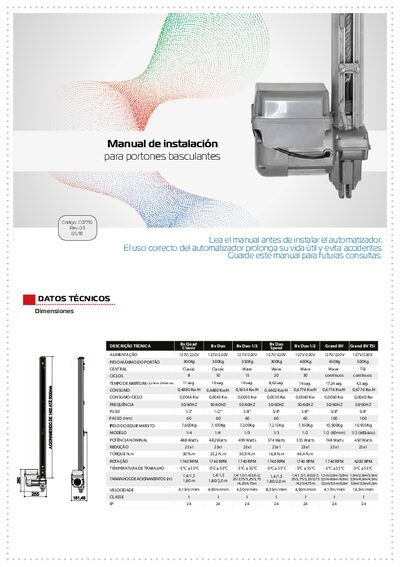

This manual provides step‑by‑step instructions for installing and configuring the BV Classic/Wave gate automation system. It includes safety guidelines, mechanical mounting procedures, and wiring diagrams for power and control connections.
Key sections cover the unlocking system, motor‑reducer side inversion, central unit programming, race (opening/closing) setup, and maintenance recommendations. The document also lists technical specifications for each model variant. This manual is written in Spanish.
| Potencia nominal | 0.4880 Kw/H |
|---|---|
| Velocidad del motor | 1740 RPM |
| Temperatura de trabajo | -5 °C a 55 °C |
| Peso del equipo | 7.600 kg |
| Voltaje de alimentación | 127 V / 220 V |
The system requires the original GAREN photocycel, model PWM, to be installed for anti‑crush protection.
Use 1.5 mm² underground cable for outdoor installations; it is not included in the kit.
