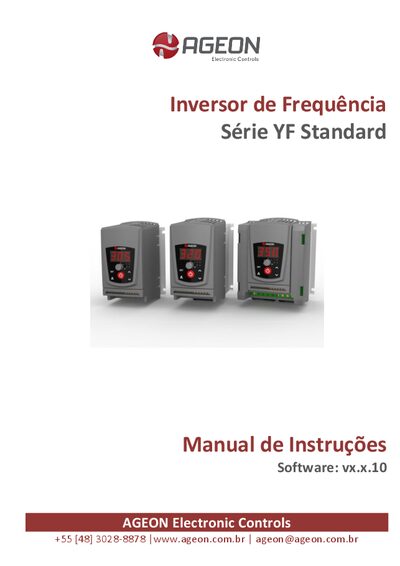

This manual describes the installation, operation and maintenance of the YF series standard inverters manufactured by AGEON Electronic Controls. The inverter is suitable for controlling three-phase asynchronous motors.
This manual describes the Ageon YF series standard inverter, its detachable human‑machine interface, power and control terminals, and basic operation. It includes quick reference parameters, symbol definitions, and a general overview of the device.
The document covers preliminary recommendations, installation steps, electrical connections for single‑ and three‑phase models, dimension tables, and warranty terms. Detailed sections explain parameter configuration, error messages, auxiliary functions, and safety precautions. This manual is written in Portuguese.
| Frequência de saída (motor) | 0 a 300 Hz |
|---|---|
| Tensão de circuito intermediário (link Cc) | 0 a 410 V |
| Corrente de saída (motor) | 0 a Imax A |
| Temperatura nos IGBT’s | 0 a Tmax °C |
| Dimensões do modelo YF10 | Largura 95 mm, Altura 157 mm, Profundidade 151 mm |
