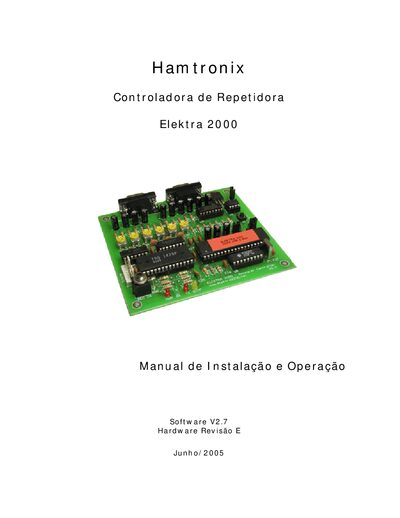

Hamtronix Elektra 2000 Repeater Controller Installation and Operation Manual, including technical support, precautions, warranty terms, software updates, connectors, installation, basic operation, function description, etc.
This manual explains how to install the Elektra 2000 repeater controller, including power connections, connector pin assignments, safety precautions, and fan‑control wiring. It also covers warranty terms and software update procedures.
The guide details basic operation such as audio level trimming, DTMF command syntax, reset procedures, and optional features like voice identifier and alarm monitoring. All commands require the four‑digit password and an "#" terminator. This manual is written in Portuguese.
| Power input voltage (idle) | 11 V – 15 V (20 mA idle) |
|---|---|
| Maximum current per port | 10 mA per port |
| Audio equalization capacitor range | 1 nF – 10 µF |
Turn off the controller by removing jumper J1, hold button $1, then turn the controller back on by reinserting jumper J1; release the button when the green RX LED lights and the reset melody is heard.
