Daihen P350L II & P500L II User Manual

This document is the manual for the Welbee P350L II P500L II welding machine.

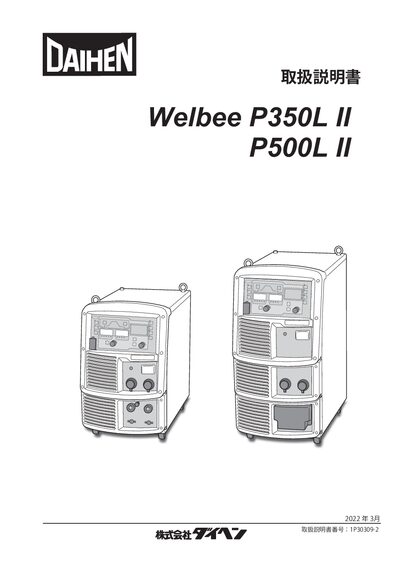

Daihen P350L II & P500L II User Manual - cover page
Brand
Daihen
Document type
User Manual
Language
Japanese
Pages
157
File format
PDF
File size
22.6 MB
Published
15 November, 2023
Updated
15 November, 2023
MD5 checksum
FA8B33FAE4510BD13C811E7655747067
PDF
Daihen P350L II & P500L II User Manual PDF

About this manual

This manual covers the safe use of the Daihen P350L II and P500 II arc‑welding power supplies. It includes safety warnings, legal requirements, and proper handling instructions before operating the equipment.

The document also details the product’s specifications, wiring and connector information, installation procedures, daily maintenance, troubleshooting of error codes, and a parts list with dimensions for replacement components. This manual is written in Japanese.

What's inside

  • Safety Information
  • Product Specifications and Configuration
  • Installation and Wiring
  • Operation and Welding Procedures
  • Welding Condition Settings
  • Administrator Functions
  • Maintenance and Inspection
  • Troubleshooting
  • Parts List and Reference Drawings
  • Applicable Regulations

Specifications

DC24V OutputAvailable
DC48V OutputAvailable
K5791B00 Dimensions222 × 85 mm
K8212B00 Dimensions160 × 75 mm
K5791B00 ConnectorCN2 (8‑pin)
K5791C00 ConnectorCN2 (7‑pin)

Frequently asked questions

What is the intended use of this welding power supply?

It is designed and manufactured as a power source for arc welding.

Which output connectors are used for the DC24V and DC48V models?

The DC24V model uses a CN2 8‑pin connector (K5791B00) and the DC48V model uses a CN2 7‑pin connector (K5791C00).
