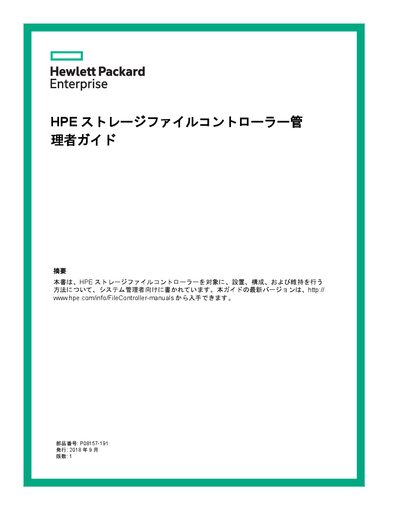

HPE Storage File Controller Administrator's Guide
This guide covers the installation, configuration, and ongoing administration of the HPE Storage File Controller. It is intended for system administrators who need to set up the hardware, connect to storage arrays, and manage the controller's software components.
The document details hardware components such as front‑panel LEDs, rear‑panel ports, and system board modules, explains clustering and high‑availability setup, and describes management tools like iLO 5, Active Health System, and the Network Configuration Utility. It also includes troubleshooting steps, support resources, and regulatory information. This manual is written in Japanese.
| Drive bays (SAS/SATA) | 2 |
|---|---|
| UID LED status | Blue solid = operational; blinking indicates remote management or firmware upgrade |
| Power LED status | Green solid = system power on; green blinking = power‑on sequence |
| Rear panel PCIe slots | 3 slots (slot 3 optional, requires second processor) |
A solid blue UID LED means the controller is operating normally; a blinking blue LED indicates remote management activity or a firmware upgrade in progress.
The latest version is available from the HPE website at http://www.hpe.com/info/FileController-manuals.
