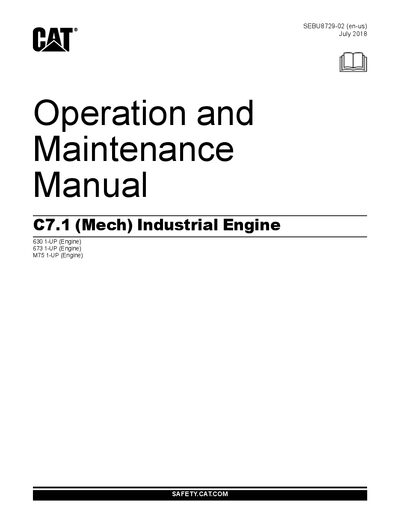

This manual is the operation and maintenance manual for C7.1 (Mech) industrial engine. It introduces how to use, maintain and operate the engine safely.
This manual delivers comprehensive safety information, warnings, and precautions for the Caterpillar C7.1 (Mech) industrial diesel engine. It outlines required personal protective equipment, hazard symbols, and procedures for safe handling, cleaning, and servicing of the engine.
The document also covers engine start‑up, operation, and shutdown steps, as well as detailed maintenance intervals, lubrication, oil recommendations, and technical specifications such as cylinder count, bore, stroke, and compression ratios. Reference sections include warranty details, engine ratings, and an index for quick navigation.
| Number of Cylinders | 6 |
|---|---|
| Bore | 105 mm |
| Stroke | 135 mm |
| Displacement | 7.01 L |
| Operating Range (rpm) | 900 to 2800 |
| Compression Ratio (6301‑Up) | 16:1 |
| Compression Ratio (6731‑Up) | 18.5:1 |
| Valve Lash Setting (Inlet) | 0.35 mm |
| Valve Lash Setting (Exhaust) | 0.45 mm |
| Firing Order | 1‑5‑3‑6‑2‑4 |
Maintenance intervals are based on fuel consumption, service hours, or calendar time as indicated in the Maintenance Interval Schedule and should be followed at the recommended intervals.
The maximum air pressure for cleaning purposes must be below 205 kPa (30 psi).
