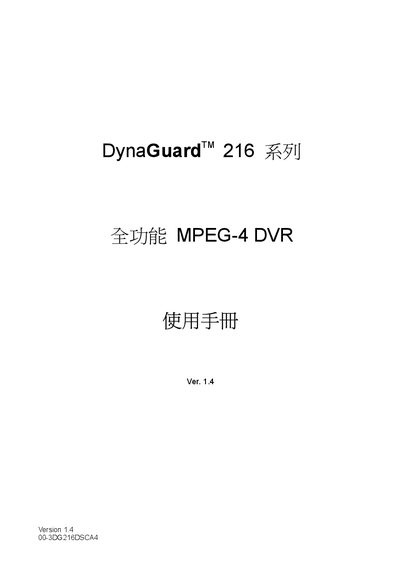

This manual describes the basic operations of DynaGuard TM 216 series full-featured MPEG-4 DVR, including system setup, general system setup, basic operations, etc.
This document begins with safety warnings, advising users to avoid vibration, keep the unit away from water, ensure proper ventilation, and never open the cover. It also outlines the importance of retaining the manual for future reference and warranty service.
The guide then describes the system’s features, including multi‑channel recording, network remote access via DynaRemote software, Linux operating system, and detailed hardware specifications such as video inputs, storage capacity, and network connectivity. This manual is written in Chinese.
| Operating System | Linux |
|---|---|
| Video Input | BNC x 16, 1.0Vp‑p/75 Ω |
| Video Output (VGA) | 800×600, 1024×768, 1280×1024 @ 60 Hz |
| Maximum Internal Storage | Up to 1 TB (supports up to 4 drives) |
| Network Interface | RJ‑45 10/100 Mbps, DHCP/PPPoE/DDNS |
| Audio Input | RCA x 2 (Line‑In) |
| Audio Output | RCA x 2 (Line‑Out) |
| Channel Capacity | 16 channels |
| Recording Rate (NTSC) | 480 pps (16 CH) |
It supports up to 16 video channels.
The unit can hold up to 1 TB of internal hard‑drive storage, with up to four drives supported.
It uses an RJ‑45 Ethernet port with 10/100 Mbps speed and supports DHCP, PPPoE, and DDNS.
Do not expose the unit to strong vibration, keep it away from water, ensure proper ventilation, and never open the cover.
