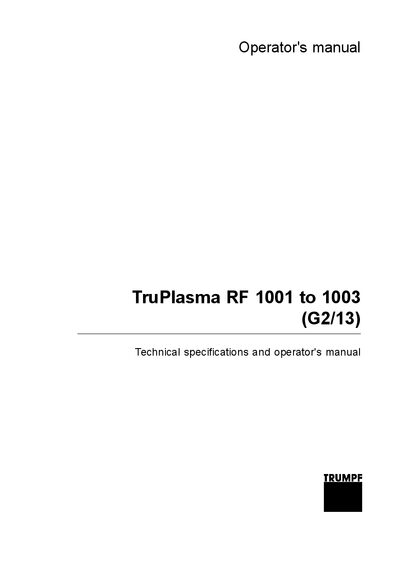

TRUMPF TruPlasma RF 1001 to 1003 Operator's Manual

About this manual

This manual explains how to safely install, operate, and maintain the TruPlasma RF 1001‑to‑1003 generator. It covers safety precautions, authorized personnel requirements, and emergency measures required for reliable use.

The document also details the technical specifications, including RF output, power accuracy, clock and pulse modes, communication interfaces (RS‑232/RS‑485, Profibus, DeviceNet), cooling water requirements, and diagnostic messages for troubleshooting.

What's inside

• Safety
• Using the generator
• Technical specifications
• Communication interfaces
• Cooling requirements
• Service and support

Frequently asked questions

What safety rules must be followed when operating the TruPlasma RF generator?

Operate only within the conditions described in the technical specifications, never open the generator, use only fault‑free RF cables, ensure proper grounding of cables and housing, and only personnel without pacemakers should work near the device.

How can I contact TRUMPF service for assistance?

Call +49 761 8971‑2170 or +49 761 8971‑1178, or email [email protected].

What information is required when requesting support?

Provide the serial number found on the name plate of the generator.
