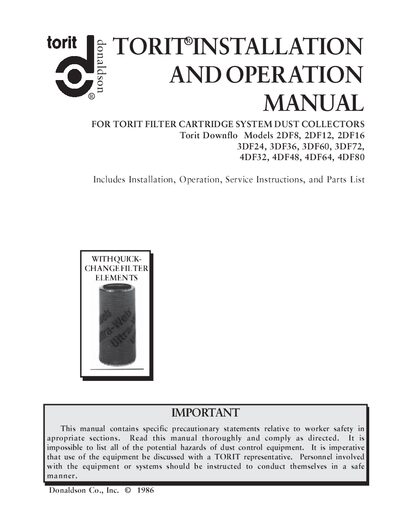

This document is about the installation and operation manual for Torit filter cartridge system dust collectors
This manual covers the Torit Downflo series of filter cartridge dust collectors, including models 2DF8, 2DF12, 2DF16, 3DF24, 3DF36, 3DF60, 3DF72, 4DF32, 4DF48, 4DF64, and 4DF80. It provides detailed guidance on pre‑installation, installation, electrical wiring, solid‑state timer specifications, start‑up procedures, and routine inspection.
Safety precautions, fire‑code compliance, and recommended air‑supply settings are emphasized, and a comprehensive parts list with ordering information is included for maintenance and repair.
| Filter element dimensions | 12‑3/4" OD, 8‑3/8" ID, 26" long |
|---|---|
| Air supply voltage | 105‑135 VAC, 50‑60 Hz |
| Output rating per channel | 60 watts maximum load |
| Operating temperature range | -10°F to +130°F |
| Pulse width (cleaning pulse) | 100 milliseconds |
| Adjustable off‑time | 1‑1.5 s minimum, 30‑36 s maximum |
| Recommended air supply pressure | 90 psig |
The air supply should be adjusted to 90 psig for satisfactory cleaning performance.
The solid‑state timer requires a low‑voltage control circuit of 120 VAC.
