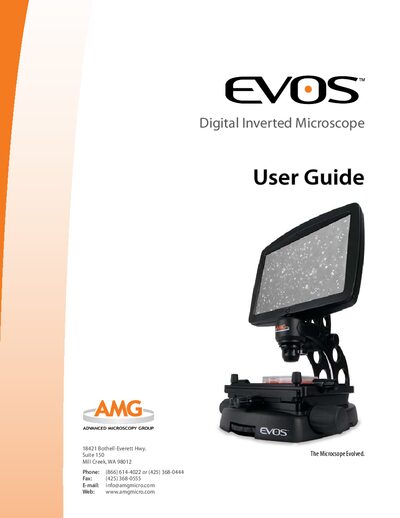

This document is the user guide of digital inverted microscope. It introduces the structure, assembly, operation and maintenance of the microscope.
This user guide covers all aspects of the eVos digital inverted microscope, including safety precautions, environmental concerns, electrical information, and detailed descriptions of both plain and mechanical stage components. It also provides assembly instructions, part lists, and warranty information.
Operational sections explain illumination control, objective selection, focus adjustments, SD‑card usage, firmware updates, and troubleshooting. The guide includes technical specifications, accessory part numbers, and customer service contact details for support and repairs.
| Optics | Infinity corrected optical system |
|---|---|
| Standard Objectives | 4x BF, 10x Ph, 20x Ph; 40x Ph (optional) |
| Camera | 3MP color CMOS |
| Captured Image Resolution | 2048 x 1536 pixels |
| Illumination | LED, 50,000‑hour service life with dimmer |
| Power Supply | AC Adapter Input 100‑240V, 0.5A Output 12 VDC |
| Weight | 11.8 Kg (26 Lb.) |
