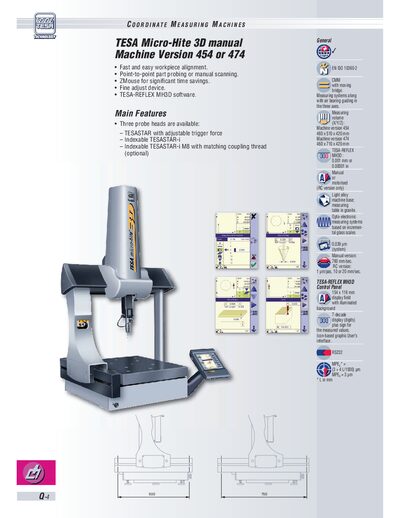

TESA Micro-Hite 3D manual Machine Version 454 or 474 is a manual machine with three probe heads, which can perform point-to-point part probing or manual scanning. The machine can quickly and easily align the workpiece and achieve significant time savings through ZMouse.
This manual describes the TESA Micro-Hite 3D coordinate measuring machine, available in versions 454 and 474. It covers the machine’s overall dimensions, weight, air and power requirements, and the optional accessories that can be fitted.
Key features include three selectable probe heads, motorised and manual displacement modes, a fine‑adjust device, and the TESA‑REFLEX software. Technical data such as positioning accuracy, displacement speeds, and environmental limits are also listed.
| Overall dimensions (474) | 460 x 710 x 420 mm |
|---|---|
| Weight (454) | 227 kg |
| Weight (474) | 200 kg |
| Air pressure | 3.9 bar (60 psi) |
| Positioning accuracy | 0.001 mm or 0.00007 in |
Three probe heads are offered: the TESASTAR with adjustable trigger force, the indexable TESASTAR‑i, and an optional indexable TESASTAR‑i M8 with matching coupling thread.
The machine provides a positioning accuracy of 0.001 mm or 0.00007 in.
The 474 version measures 460 × 710 × 420 mm and weighs about 200 kg.
