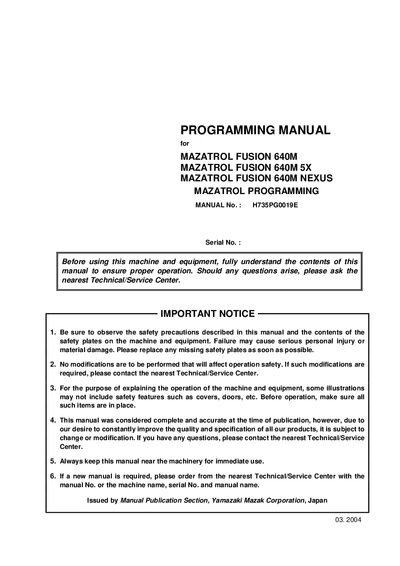

Mazak Fusion 640M Programming Manual

About this manual

This manual introduces the Fusion 640M, Fusion 640M 5X, and Fusion 640M Nexus models and outlines essential safety precautions, including keeping hands away from controls after power‑on and observing all safety plates. It emphasizes the need to verify data, tool paths, and machine settings before machining to prevent unexpected operation or injury.

The document details programming rules, G‑code/M‑code differences, barrier and mirror functions, and procedures for modifying tool data. It also includes appendices with cursor‑key data correction steps and a list of models that employ sliding‑surface structures.

What's inside

• Safety Precautions
• Programming
• Operations
• Appendix
• List of applicable models and intended axes

Specifications

Frequently asked questions

What is the manual number for the Mazak Fusion 640M programming manual?

The manual number is H735PG0019E.

What safety precaution should be taken immediately after turning the power on?

Keep hands away from the keys, buttons, or switches of the operating panel until an initial display appears.

How should tool data be verified after modification?

Run the tool path check and solid check functions to confirm the program operates correctly.

Which models use a sliding surface structure?

Models such as INTEGREX 50Y, INTEGREX 70Y, SLANT TURN 450, and others listed in the manual employ sliding surface structures.
