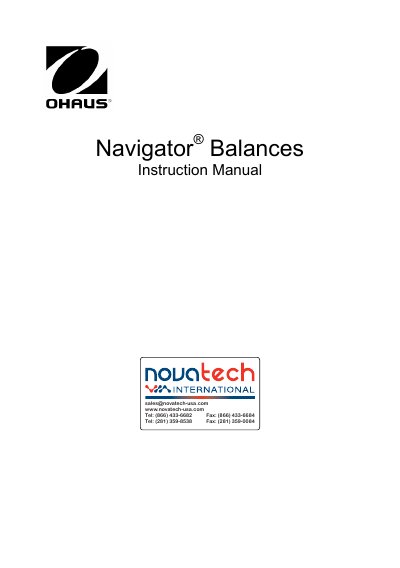

This manual contains installation, operation and maintenance instructions for the Navigator® Series.
The document serves as a comprehensive guide for the Novatech Navigator Series, specifically detailing the setup and usage of the EN-1 model. It covers essential safety precautions, control functions for both standard LED and approved LCD displays, and initial calibration procedures including span calibration requirements.
Key operational features described include various weighing modes such as Weigh, Parts Counting, Percent, Display Hold, Accumulation, and Checkweigh. The manual also explains how to access the User Menu to customize settings like Auto Off, display brightness, and IR sensor configurations.
| Required Span Calibration Mass (6.4kg - 10kg capacity) | 5kg / 10lb |
|---|---|
| Required Span Calibration Mass (3.1kg - 5.1kg capacity) | 310g |
Press and hold Mode until [Count] is displayed.
The capacity range for this model is between 6400g and 10kg.
The balance needs to be charged for 12 hours before it can operate on battery power.
The sensors are activated by placing an object about 12mm (½ inch) above them.
