ENDA ET1412 Digital Thermostat Installation and Operation Manual

ENDA ET1412 temperature controller installation manual, introduces the features and characteristics of the device, including electrical connection, installation size, etc.

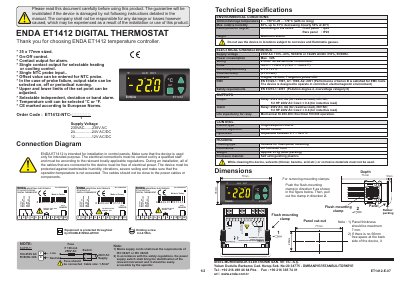

ENDA ET1412 Digital Thermostat Installation and Operation Manual - cover page
Brand
ENDA
Document type
User Manual
Language
English
Pages
2
File format
PDF
File size
227 KB
Published
16 October, 2023
Updated
16 October, 2023
MD5 checksum
BED4732635397A34E882164D62869226
PDF
ENDA ET1412 Digital Thermostat Installation and Operation Manual PDF

About this manual

The ENDA ET1412 is a digital thermostat designed for flush-panel mounting in control panels. It features single-setpoint On-Off control with selectable heating or cooling modes, NTC probe input, and adjustable alarm functions including independent, deviation, or band alarms. The device supports both °C and °F temperature units.

What's inside

  • Installation
  • Connection Diagram
  • Technical Specifications
  • Housing Dimensions
  • Parameter Table
  • Menu of Output Control
  • Menu of Configuration
  • Menu of Alarm Control
  • Error Messages
  • Alarm Output Types

Specifications

Supply Voltage230V AC +10% -20%, 50/60Hz or 12/24V AC/DC
Power ConsumptionMax. 3VA
Scale Range-60.0 ... +150.0°C (-76.0 ... +302.0°F)
Sensitivity/Accuracy0.1°C (±1°C)
Output Relay Rating250V AC, 8A (resistive load)
DimensionsW77xH35xD71mm

Frequently asked questions

What is the control algorithm of the ET1412?

The device uses a single-setpoint On-Off control type.

Can the temperature unit be changed?

Yes, the temperature unit can be selected as either °C or °F.

What happens if the probe fails?

In case of probe failure, the output state can be selected to be on, off, or periodical running.
