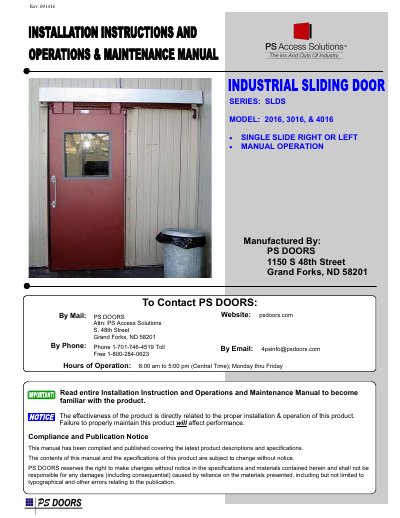

PS Doors SLDS Series 2016, 3016, 4016 Installation and Maintenance Manual

About this manual

This document provides installation instructions and operations and maintenance guidance for the PS Doors SLDS Series industrial sliding doors. It covers single slide right or left manual operation configurations for models 2016, 3016, and 4016.

The guide details the step-by-step installation process, including site preparation, frame extension, mounting jamb channels and tracks, hanging the door, and installing weatherstripping. It also outlines safety precautions and warranty terms.

What's inside

• Safety Precautions
• Limited Warranty
• General Information
• Storage Prior to Installation
• Installation Site Preparation
• Pre-Installation Safety
• Frame Extension
• Mounting Trail Jamb Channel
• Mounting Top Track Assembly
• Weatherstrip Installation

Frequently asked questions

What is the warranty period for this product?

PS DOORS warrants the product and components to be free from defects for a period of Five (5) years from the date of shipment.

What is the operating time for the manufacturer's contact hours?

The manufacturer operates from 8:00 am to 5:00 pm (Central Time) Monday through Friday.

What is required for the bottom of the attached stay roller plate?

The bottom of the attached stay roller plate should be FLUSH with the high-point line made in Step 1.
