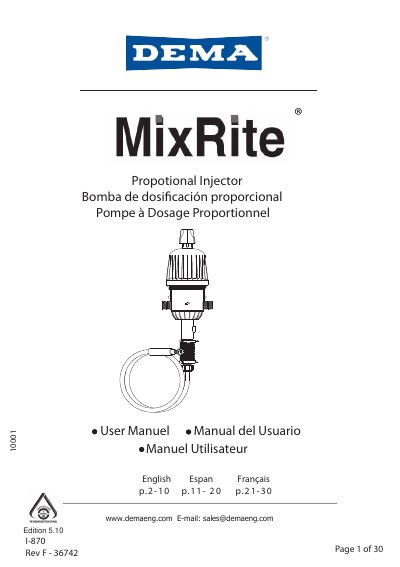

This manual is the user manual of Demaeng MixRite proportional injector, which introduces the characteristics of the product, including water engine, additive suction tube, suction unit with adjustable proportional dosing, water outlet, air release valve, etc.
The Demaeng MixRite is a water-powered proportional injector that requires no external power. It uses a water engine to drive a piston, drawing liquid additives from a container and injecting them into the water flow in direct relation to the water volume. The device is suitable for flow rates from 20 L/H to 2,500 L/H and operates within a temperature range of 4°C to 40°C.
| Minimum flow rate | 20 L/H (5.3 Gal/H) |
|---|---|
| Maximum flow rate | 2,500 L/H (660 Gal/H) |
| Operating temperature | 4°C to 40°C (39°F to 104°F) |
| Water pressure range | 0.2 Bar to 8 Bar (2.9 to 120 PSI) |
| Additive dosing range (Models 570, 571, 576IN, 577IN) | 0.3% to 2% |
| Additive dosing range (Models 572, 573, 578IN, 579IN) | 0.4% to 4% |
| Additive dosing range (Models 574CL, 575CL) | 3% to 10% |
| Inlet and outlet thread | ¾" BSPT male thread |
No, the MixRite is powered by water flow and requires no external power.
A 50-75 mesh (250-300 micron) filter should be installed between the valve and the injector intake.
Turn the proportioning Adjuster counter-clockwise to increase the amount of additives and clockwise to decrease it.
