JMV Robotique TP 000 156 Speed Wrap Case Wrapper Operating and Maintenance Manual

This manual provides operating and maintenance instructions for the Speed Wrap automatic case wrapper

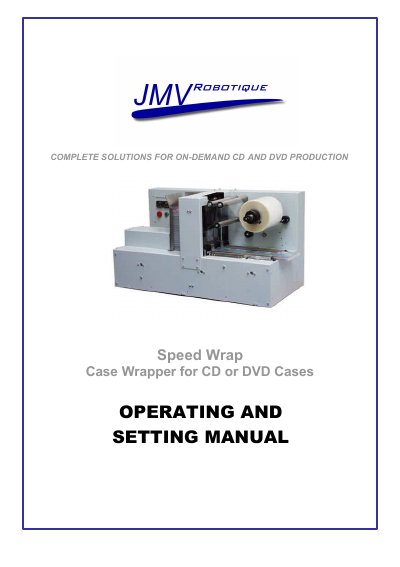

JMV Robotique TP 000 156 Speed Wrap Case Wrapper Operating and Maintenance Manual - cover page
Brand
JMV Robotique
Category
Industrial Robot
Document type
User Manual
Language
English
Pages
28
File format
PDF
File size
2 MB
Published
16 October, 2023
Updated
16 October, 2023
MD5 checksum
61AC6A701B1E1C0E6F28F1A9C042A5F1
PDF
JMV Robotique TP 000 156 Speed Wrap Case Wrapper Operating and Maintenance Manual PDF

About this manual

This manual provides instructions for the JMV Robotique TP 000 156 Speed Wrap Case Wrapper, a tabletop unit designed for professional wrapping of CD and DVD cases using polypropylene film. The device features automatic operation with adjustable heater temperatures and tension controls to ensure a secure seal.

What's inside

  • Specification
  • Introduction and Installation
  • Powering Up
  • Emergency Stop
  • Heater Seal Temperature Control
  • Installing the Cello Roll
  • Threading the Cello Wrapping
  • Making Adjustments
  • Operating the Speed Wrap
  • Long edge seal adjustment

Specifications

Power supply200/220Vac 50/60Hz 1000 VA
Fuse5 Amp
Capacity1200 per hour
Duty CycleContinuous
Height27” (685mm)
Width44.5” (1130mm)
Depth22.6” (575 mm)
Gross Weight320lbs (145Kg)
Net Weight187.4lbs (85kg)
Polypropylene thickness recommended25 Micron
No. of cases per roll4800 approx.

Frequently asked questions

How long does it take for the heaters to stabilize?

It will take approximately 15 minutes for the heaters to reach and stabilize at the set temperature.

What should be done before making adjustments to the unit?

The Emergency Stop switch must be depressed and the main power disconnected before any adjustments are made.

What happens if the Emergency Stop is pressed?

Pressing the Emergency Stop stops the unit mechanism, but it does not turn off the heater.

Download PDF (2 MB)
