Raditeq RGN2400A/RGN2006B RadiGen Signal Generator Product Manual

This product manual introduces the features and usage of RadiGen® signal generator

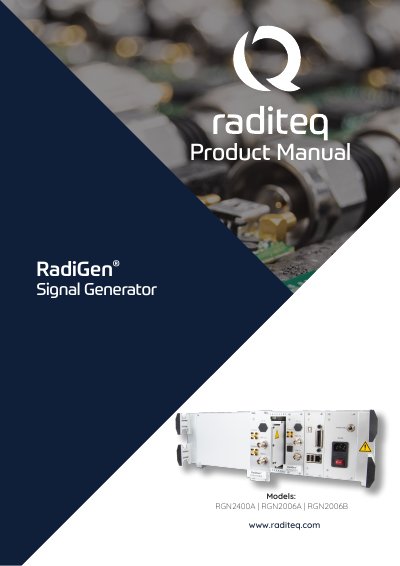

Raditeq RGN2400A/RGN2006B RadiGen Signal Generator Product Manual - cover page
Brand
raditeq
Category
Signal generator
Document type
User Manual
Language
English
Pages
34
File format
PDF
File size
3.9 MB
Published
15 October, 2023
Updated
15 October, 2023
MD5 checksum
87C9F3E4948D93005581671B6BA8B61B
PDF
Raditeq RGN2400A/RGN2006B RadiGen Signal Generator Product Manual PDF

About this manual

The RadiGen® is an RF signal generator designed for Electric Magnetic Compatibility (EMC) immunity test systems. It produces modulated or un-modulated RF signals to perform fast and accurate EMC tests without external modulation sources. The manual covers two models: the RGN2400A (9 kHz to 400 MHz) and the RGN2006B (4 kHz to 6 GHz).

What's inside

  • WARNINGS & PRECAUTIONS
  • The RadiGen® Series
  • Modulation types
  • Components
  • Hardware installation
  • Software Configuration
  • Remote Control
  • RadiGen® Command Set
  • RadiGen® Specifications

Specifications

Frequency Range (RGN2400A)9 kHz to 400 MHz
Frequency Range (RGN2006B)4 kHz to 6 GHz
Frequency Driftless than 10 ppm/year
AM Modulation Depth0 to 100%
FM Modulation Deviation1 Hz to 100 kHz
Pulse Modulation Range200 ns – 100 s

Frequently asked questions

What are the models included in this manual?

The manual covers the RGN2400A and RGN2006B models.

Can the RadiGen be used as a standalone unit?

No, it is designed to be used as a plug-in card for the RadiCentre® series.

What is the frequency drift of the RadiGen?

The frequency drift is less than 10 ppm/year.

Download PDF (3.9 MB)
