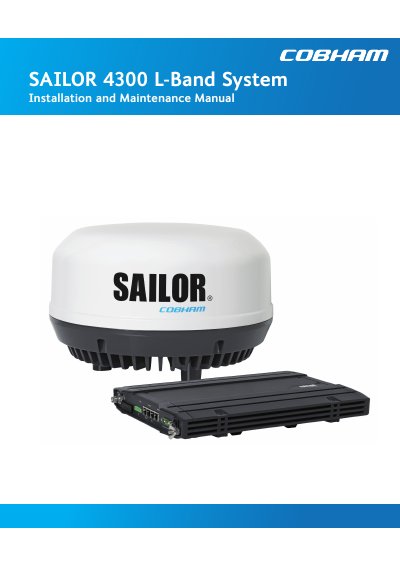

This manual provides instructions on the installation and maintenance of the SAILOR 4300 L-Band System
The document serves as a comprehensive guide for the installation and maintenance of the SAILOR 4300 L-Band System. It covers site preparation, mounting procedures for both Above Deck (ADU) and Below Deck (BDU) units, interface connections, and commissioning steps.
Additionally, the manual details configuration via built-in web interfaces, remote management capabilities, firmware updates, and troubleshooting procedures. It includes technical specifications regarding environmental conditions, power consumption, and mechanical shock resistance.
| Weight, BDU | 3.5 kg |
|---|---|
| Weight, ADU | 9.5 kg |
| Dimensions, BDU | 48 x 27 x 4 cm |
| Operating frequency range | 1616 - 1626.5 MHz |
| Output power | 15.4 dBw |
| Number of antennas | 7 |
| Operating temperature (BDU) | -25 to +55°C |
| Power consumption (max) | 120 W @ 10.8-31.2 VDC |
The minimum safety distance to the antenna is 0.7 m, based on max Eirp= 46.4dBm +1dB.
Only a technician authorized by Cobham SATCOM may perform service; access to the interior of the terminal is not allowed for others.
The SAILOR 4300 L-Band System operates on a voltage range of 12 - 24 VDC.
