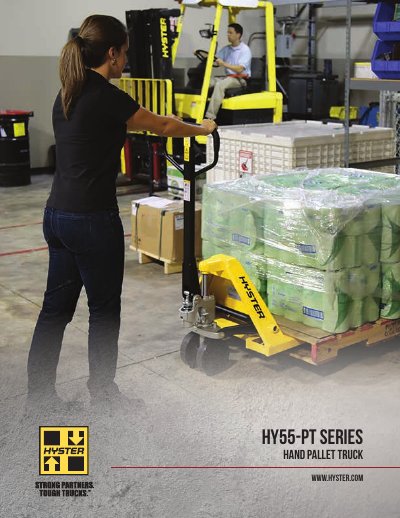

The document introduces the features and characteristics of Hyster® HY55-PT manual hand pallet truck, including weight, dimensions, materials, functional characteristics and optional configurations
The Hyster HY55-PT series manual hand pallet truck is designed as a warehouse workhorse, delivering exceptional durability, functionality, and serviceability. Key durability features include a heavy 1.25" steel adjustable push rod, 2.1" steel C-channel, and 8" reinforcing bars. The truck features a serviceable pump with a large oil reserve and is available in various configurations such as low profile, stainless steel, galvanized, and weigh scale models.
| Fork length | 48" |
|---|---|
| Forks overall width | 27" or 20.5" |
| Lowered fork height | 2.9" |
| Raised fork height | 7.8" / 7.5" |
| Single fork width | 6.5" |
| Weight | 180 lbs. |
| Steer wheels | 7" |
| Load rollers | 2.9" x 3.6" |
The product is designed to lift loads up to 5,500 lbs.
It takes 10 full pump strokes to reach the maximum lift.
The forks have an overall width of 27 inches or 20.5 inches.
