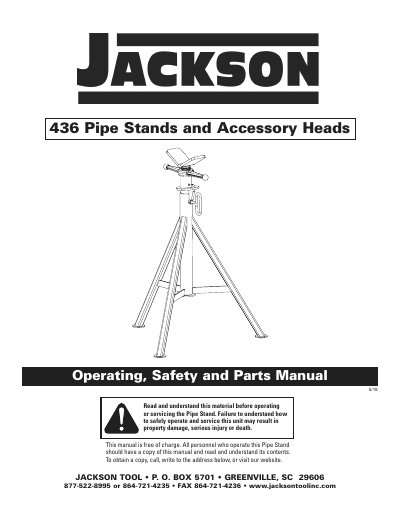

This manual covers the operation, safety precautions, and maintenance of the Jackson Tool 436 Pipe Stand. It details how to adjust the stand height using the quick adjustment tube and T-screw mechanism safely. The document also provides instructions for installing various optional accessory heads, including steel wheel heads, plastic wheel heads, bar stock heads, and ball transfer head attachments.
| Pipe Size Capacity | 1/2" to 12" |
|---|---|
| Max. Weight Capacity | 2500 lbs. |
| Overall Dimensions (retracted) | L 24" W 201/2" H 31" |
| Min. Stand Height | 29" |
| Max. Stand Height | 49" |
The maximum rated capacity of the Pipe Stand is 2500 lbs.
Loosen the T-screw, lift the quick height adjustment tube to the desired height, and then tighten the T-screw.
Yes, optional accessory head assemblies such as wheel heads or bar stock heads can be installed onto the 436 base.
