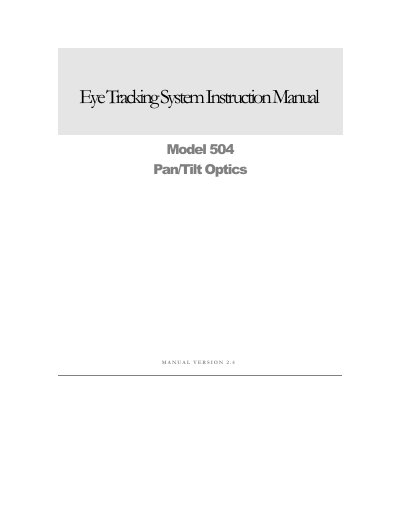

This manual introduces the general system description, major assemblies, options, installation, component placement, interconnections, etc. of Model 504 Pan/Tilt Optics.
The document serves as a comprehensive instruction guide for the Model 504 remote eye tracker. It details the system's components, including the pan/tilt optics module, control unit, and interface software (E5Win). The manual covers setup procedures such as unpacking, assembly, and interconnecting various modules like the scene camera or scan converter.
It is designed to accurately measure a person's pupil diameter and point of gaze on a stationary scene space.
An auto-focusing lens in the pan/tilt module focuses an image onto a solid state video sensor, while the mechanism rotates to follow the eye's motion.
The system uses the Eye Tracker Interface program named E5Win for calibration and operation.
