NABCO U30 Microprocessor Control Setup and Programming Manual

This manual provides information on how to set up and program the U30 Microprocessor Control for sliding door systems.

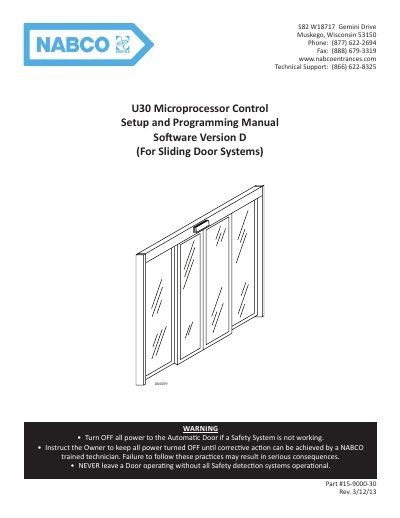

NABCO U30 Microprocessor Control Setup and Programming Manual - cover page
Brand
Nabco
Document type
User Manual
Language
English
Pages
27
File format
PDF
File size
806 KB
Published
15 October, 2023
Updated
15 October, 2023
MD5 checksum
E447E334028CA125D5758A47B2C364D4
PDF
NABCO U30 Microprocessor Control Setup and Programming Manual PDF

About this manual

The document is a user guide for the NABCO U30 Microprocessor Control (Part #15-9000-30), designed for installation within the header of GT-1175 slide door systems. It covers safety recommendations, scope of use, and initial startup procedures including wiring diagrams and Handy Terminal connections.

The guide details adjustment procedures for standard functions, feeling adjustments, special functions, and history data maintenance. It also includes a troubleshooting section to assist technicians in diagnosing issues with the control unit.

What's inside

  • Warning Labels
  • General Safety Recommendations
  • Scope of Use
  • About the U30 Microprocessor Control
  • Electrical Specifications
  • Input and Output Features
  • Initial Startup Procedures
  • Wiring Instructions
  • Adjustment Procedures
  • Troubleshooting

Specifications

Power Source20 VAC (+10%) 50-60Hz, 100 VA (Class 2)
Current ConsumptionMax. 5A
Power Output12 VDC 0.35 amps (350 mA)
Relay Output RatingMax. 30V (42.4V peak) / Max. 5A (0 to 20V)
Open Collector Output RatingMax. 30V (42.4V peak) / Max 50mA
Maximum Recommended Door Weight600 pounds total

Frequently asked questions

What is the maximum recommended door weight for the U30?

The maximum recommended door weight is 600 pounds total (300 pounds each for a bi-part or 600 pounds for a single).

What is the hold open time delay range?

The hold open time delay can be set from 0 to 67 seconds.
