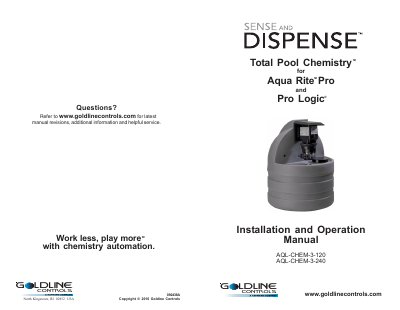

This is an installation and operation manual for a pool chemistry control system
The document is a user guide for the Goldline Controls AQL-CHEM-3 (120V AC) and AQL-CHEM-3-240 (240V AC), an automatic acid dispensing system compatible with Aqua Rite Pro and Pro Logic pool controls. The system utilizes a Stenner S1G45MJL3F2S/W2S Series acid pump to lower pH levels in swimming pools by automatically dispensing muriatic acid when needed.
| Compatible Models | Goldline Aqua Rite Pro and Pro Logic pool controls |
|---|---|
| Voltage Options | 120V AC and 240V AC |
| Pump Type | Stenner S1G45MJL3F2S/W2S Series acid pump |
| Tank Capacity | 15 gallon tank |
| Recommended Dilution Ratio | 4:1 dilution of 20° Baume hydrochloric acid |
| Tank Fill Level for Pools up to 15,000 gallons | 5 gallons of 4:1 solution |
| Tank Fill Level for Pools up to 30,000 gallons | 10 gallons of 4:1 solution |
| Tank Fill Level for Pools above 30,000 gallons | 15 gallons of 4:1 solution |
You must always add acid to water, never add water to acid, to prevent violent boiling and splashing.
The system utilizes a 15 gallon tank to lower the pH level in your swimming pool.
You must fill the 15 gallon tank with 15 gallons of 4:1 solution for pools above 30,000 gallons of water.
The installation requires a 7/16" drill bit.
