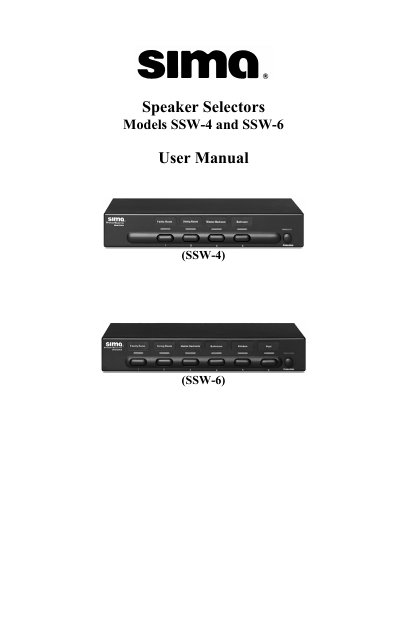

Sima SSW-4 and SSW-6 Speaker Selectors User Manual

This document is a user manual for Sima speaker selectors.

Brand: SIMA
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 8
File format: PDF
File size: 126 KB
Published: 15 October, 2023
Updated: 15 October, 2023
MD5 checksum: EDEBC4C9C96F9C5ED5CAFE28D3C4E951
PDF: Sima SSW-4 and SSW-6 Speaker Selectors User Manual PDF

About this manual

This manual provides instructions for the Sima SSW-4 and SSW-6 speaker selectors, which allow users to add up to four or six speaker pairs to an amplifier system without purchasing additional amplifiers. The devices feature isolated left and right commons, no power requirement for operation, and a unique protection circuitry capable of handling up to 100 watts of amplifier power.

What's inside

Important Safety Precautions
What's Included
Front Panel
Rear Panel
Typical Hook up
Installation Tips
Operation
Trouble Shooting
Technical Specifications
Limited Warranty

Specifications

Max Amplifier Power	100 watts per channel
Impedance Range	4 to 16 ohm
Wire Gauge	14 to 22 gauge
Dimensions (SSW-6)	11.75" wide, 6.5" deep, 2" high

Frequently asked questions

How many speaker pairs can the SSW-4 and SSW-6 handle?

The SSW-4 can handle up to 4 speaker pairs, and the SSW-6 can handle up to 6 speaker pairs.

Is power required to operate the speaker selector?

No, the unit does not require power for operation.
