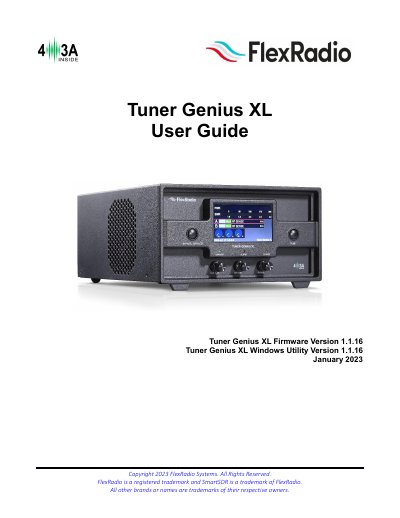

Describes the features and characteristics of the FlexRadio Tuner Genius XL and how to use it
The Tuner Genius XL (TGXL) is a 2000W automatic antenna tuner designed for amateur radio service, covering frequencies from 1.8 MHz to 54 MHz. It features a pi-network tuning circuit with high-precision RF power and SWR meter displays, eliminating the need for separate metering devices. The unit is compatible with modern HF radios and integrates tightly with the Power Genius XL and FLEX-6000 series transceivers via LAN-based API.
| Power Rating (Commercial/Amateur) | 1500W 100% Intermittent |
|---|---|
| Maximum Peak Power | 2000W |
| Frequency Coverage | 1.8 MHz to 54 MHz |
| Maximum SWR Match | 10:1 |
| Tuning Circuit Type | Pi-network |
| Matching Combinations | 16,581,375 |
| Spectral Response Flatness | one-tenth of a dB |
The absolute maximum peak power handling capability is 2000W.
No, it provides high-precision peak responding RF power and SWR meter displays, eliminating the need for a separate device.
It covers frequencies from 1.8 MHz to 54 MHz.
No, the unit is not designed for use outdoors or in indoor environments that exceed the designed environmental limits.
